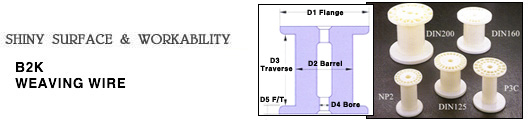

Type

No.

Diameter(mm)

Spooling Wt.(kg)

Spool Size(mm)

Flange

D1

Barrel

D2

Traverse

D3

Arbor Hole

D4

Flange thickness

D5

DIN

80

0.09-0.10

1

80

50

64

16

8

100

0.10-0.14

2

100

63

80

16

10

125

0.10-0.25

3

125

80

100

16

12.5

160

0.16-0.50

6

160

100

127

22

16.5

200

0.20-0.80

12

200

125

160

22

20

250

0.52-1.00

20

250

160

160

22

20

P

1

0.09-0.14

1

100

50

70

20

10

2

0.10-0.25

2

130

80

90

21

10

3

0.10-0.30

3

130

60

90

21

10

4

0.10-0.40

4

160

90

90

21

12

5

0.20-0.60

5

160

70

90

22

12

10

0.20-0.40

10

200

91

110

25

11

20

0.25-0.60

20

250

110

110

34

14.5

25

0.25-0.80

25

300

130

130

32

15

PL

1

0.09-0.12

1

80

50

100

22

10

2

0.09-0.25

2

100

65

125

20

10

3

0.10-0.15

3

105

60

148

20

9

4

0.10-0.20

5

125

80

160

20

15

PT

10

0.15-0.40

10

160/180

96/110

200

29

15

15

0.15-0.60

15

180/220

96/110

200

30

15

20

0.25-0.80

20

215/230

131/160

250

32

15

25

0.25-1.00

25

215/230

110/150

250

32

15
